Welding apparatus

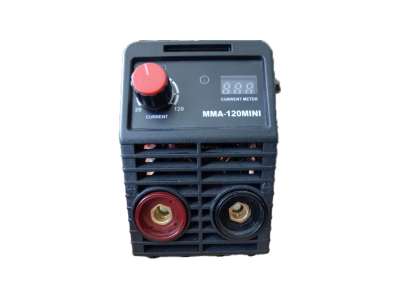

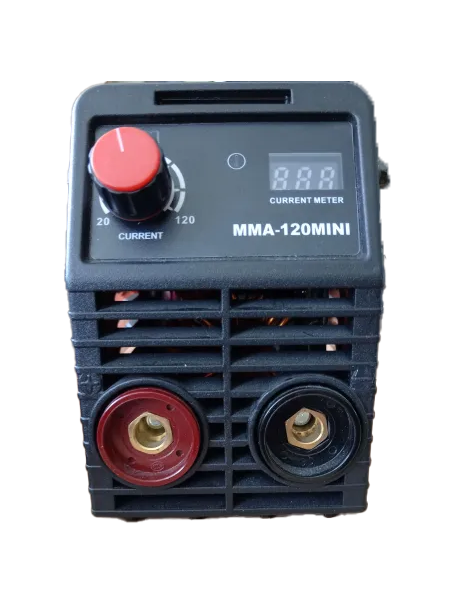

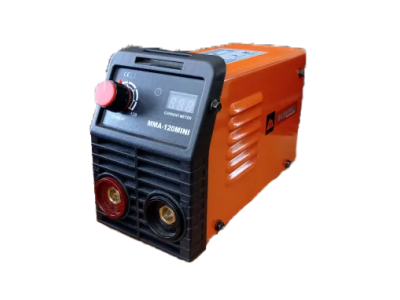

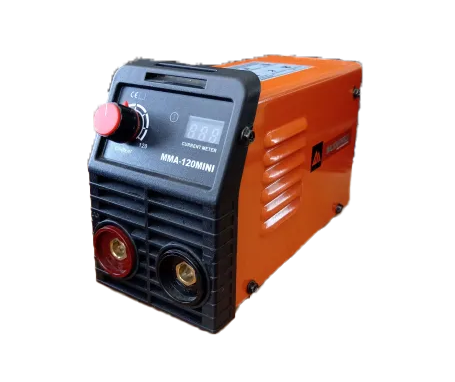

Electric inverter Balkan Weld MMA 120 Mini
Nomenclature number: 185300300
Input voltage: 220-240V
Frequency: 50/60Hz
Rated input capacity, (KVA): 4.0
Power factor: 0.93
No-load voltage: 56V
Current range: 20-120A
Rated duty cycle: 60%
Usable electrode: 1.6-3.2mm
Insulation class: F
Protection degree: IP21
Dimension: 208х85х132mm
Weight: 2.0kg
Frequency: 50/60Hz
Rated input capacity, (KVA): 4.0
Power factor: 0.93
No-load voltage: 56V
Current range: 20-120A
Rated duty cycle: 60%
Usable electrode: 1.6-3.2mm
Insulation class: F
Protection degree: IP21
Dimension: 208х85х132mm
Weight: 2.0kg
€63.09
Description
1. Advanced IGBT inverter technology and single PCB implementation,
built-in Hot-Start/Anti-Stick/Arc Force functions.
2. High efficiency, low consumption, energy saving, more attractive design.
3. Stable performance, with strong compensation ability, resistant to voltage fluctuations
4. Easy to start the arc, less splash, thermostatic control, automatic protection from
overvoltage and overcurrent, fan cooling.
5. Light, compact, easy to operate.
6. Applicable to welding all kinds of low carbon steel, medium carbon steel,
alloy steel etc.
7. Smallest design with big power.
built-in Hot-Start/Anti-Stick/Arc Force functions.
2. High efficiency, low consumption, energy saving, more attractive design.
3. Stable performance, with strong compensation ability, resistant to voltage fluctuations
4. Easy to start the arc, less splash, thermostatic control, automatic protection from
overvoltage and overcurrent, fan cooling.
5. Light, compact, easy to operate.
6. Applicable to welding all kinds of low carbon steel, medium carbon steel,
alloy steel etc.
7. Smallest design with big power.
