Welding apparatus

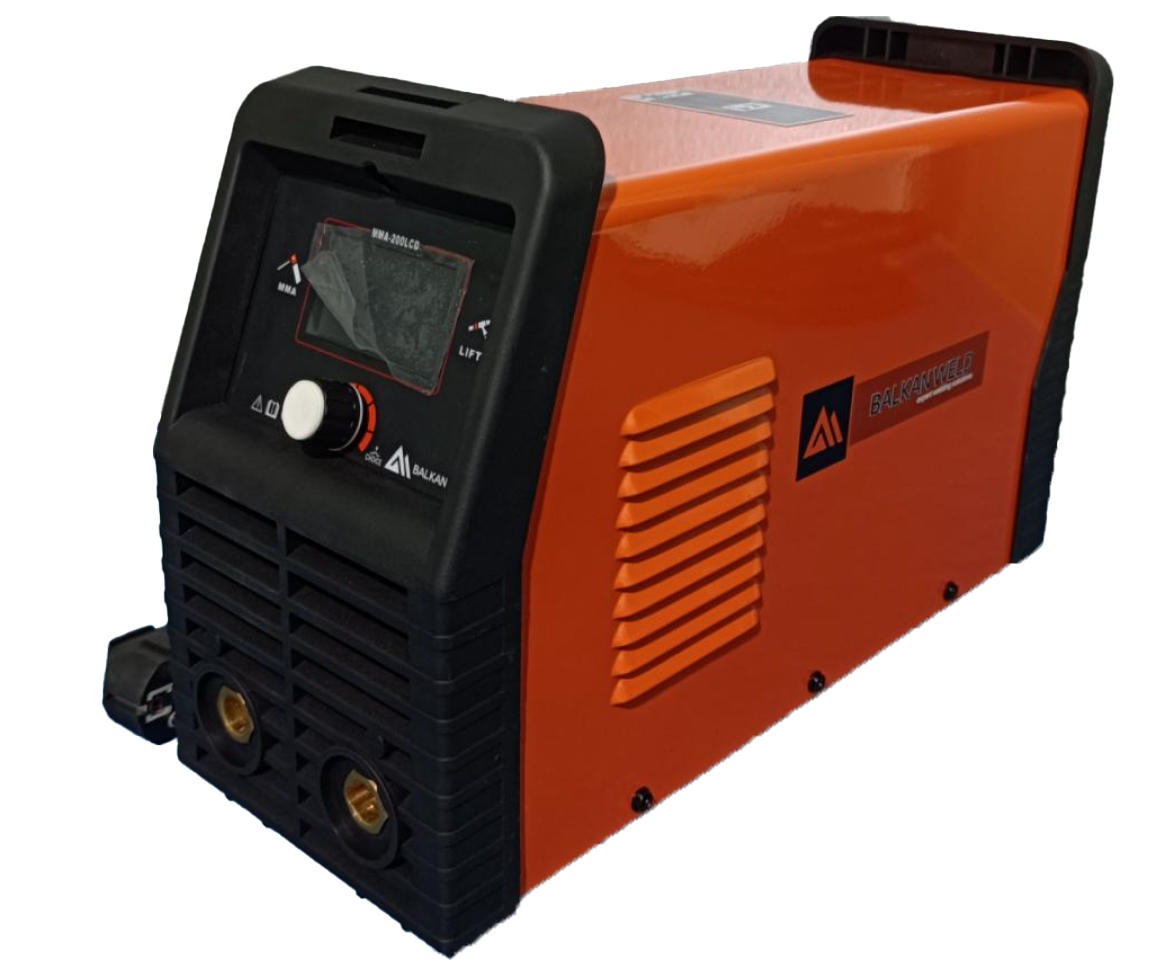

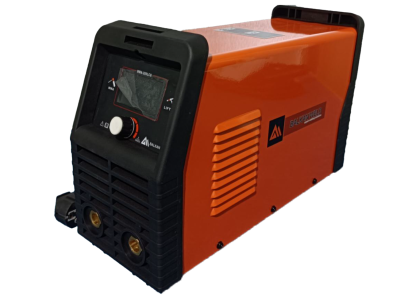

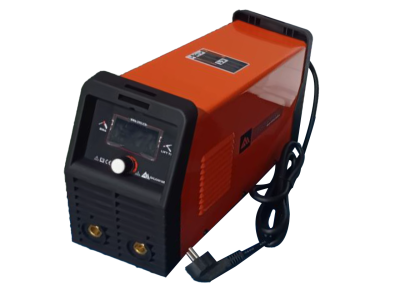

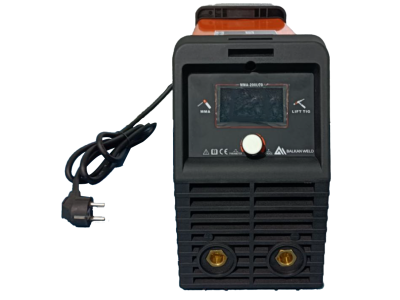

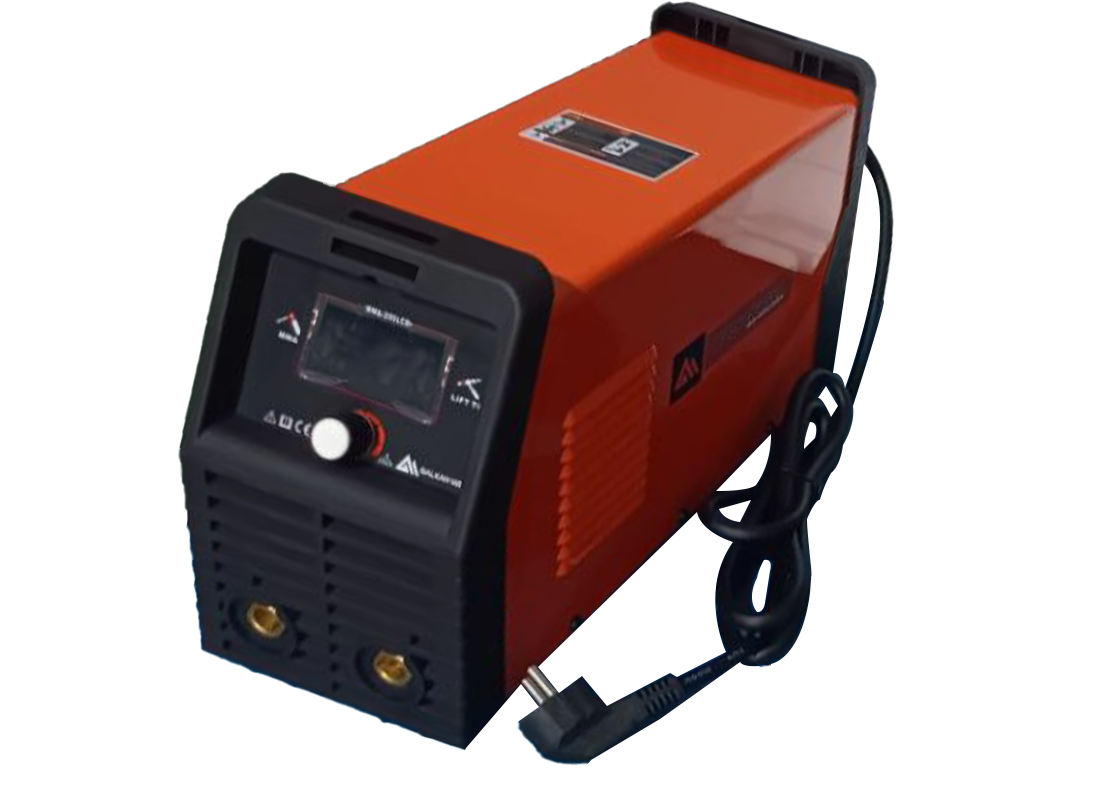

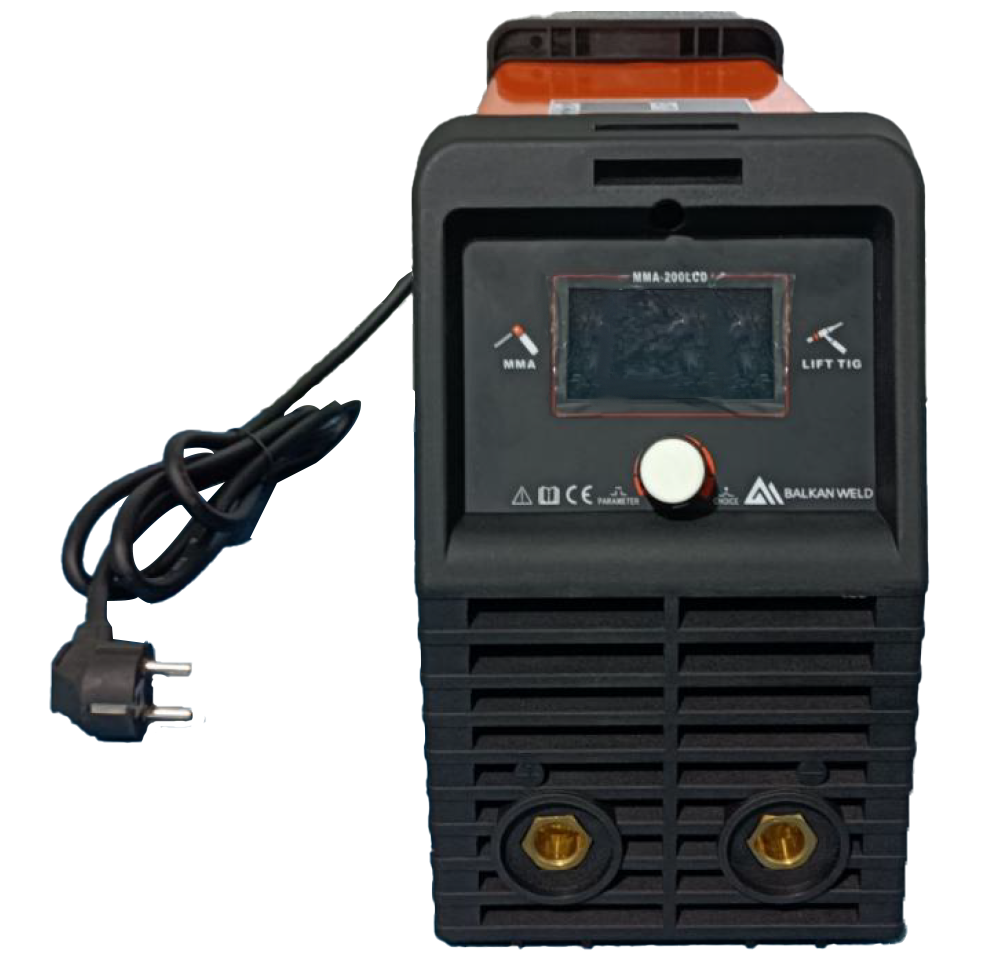

Electric inverter Balkan Weld MMA 200 LCD
Nomenclature number: 185300307
Model: MMA-200 LCD
Input voltage: 220-240V
Frequency: 50/60Hz
Input capacity, (KVA): 7.1
Power factor: 0.93
No-load voltage: 68V
Current range: 20-200A
Duty cycle: 60%
Electrode: 1.6-5.0mm
Insulation class: F
Protection degree: IP21
Dimension: 280х120х200mm
Weight: 4.3kg
Accessories: Electrode holder with 2m copper cable,
earth clamp with 2m copper cable.
Input voltage: 220-240V
Frequency: 50/60Hz
Input capacity, (KVA): 7.1
Power factor: 0.93
No-load voltage: 68V
Current range: 20-200A
Duty cycle: 60%
Electrode: 1.6-5.0mm
Insulation class: F
Protection degree: IP21
Dimension: 280х120х200mm
Weight: 4.3kg
Accessories: Electrode holder with 2m copper cable,
earth clamp with 2m copper cable.
€159.85
Description
1. Advanced IGBT inverter technology and single PCB implementation, high resolution LCD and size 61x37mm,
Convenient user interface, Synergic function when selecting electrode 1.6/2.0/2.5/3.2/4.0/5.0mm, Hot-Start/Anti-Stick/Arc Force adjustment and VRD functions.
2. High efficiency, low consumption, energy saving, more attractive design.
3. Stable performance, with strong compensation ability,
voltage fluctuation resistant.
4. Easy to start the arc, less spatter, thermostatic control,
automatic overvoltage and overcurrent protection, fan cooling.
5. Light, compact, easy to operate.
6. Applicable for welding all kinds of low carbon steel,
medium carbon steel, alloy steel. and others.
7. Using 35-50mm2 cable connectors.
Convenient user interface, Synergic function when selecting electrode 1.6/2.0/2.5/3.2/4.0/5.0mm, Hot-Start/Anti-Stick/Arc Force adjustment and VRD functions.
2. High efficiency, low consumption, energy saving, more attractive design.
3. Stable performance, with strong compensation ability,
voltage fluctuation resistant.
4. Easy to start the arc, less spatter, thermostatic control,
automatic overvoltage and overcurrent protection, fan cooling.
5. Light, compact, easy to operate.
6. Applicable for welding all kinds of low carbon steel,
medium carbon steel, alloy steel. and others.
7. Using 35-50mm2 cable connectors.
